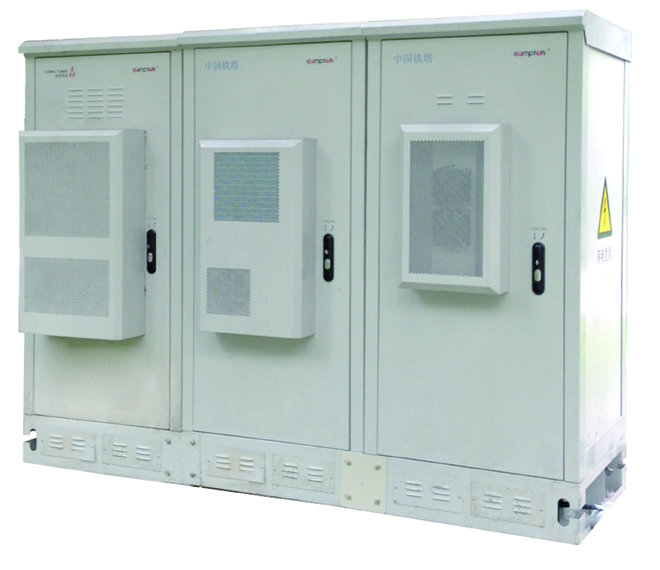

integrated cabinet

size: standard size power: 220v material: material combination packaging: general packaging integrated cabinet, means a direct impact on the climate in the next, made of metal or non-metal material, the operator is not allowed to enter the base station access platform operation. its internal equipment can be installed communication system, ac and dc power distribution, battery, temperature control equipment, and other ancillary equipment, can provide a reliable mechanical and environmental protection for the internal devices work properly.

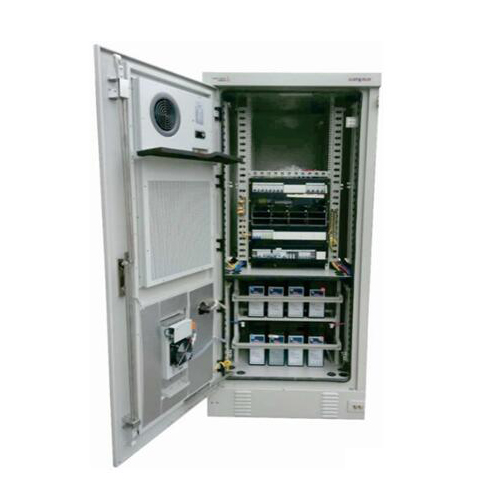

outdoor cabinet- s

this kind of outdoor telecom cabinet is adopt to double-layer insulation structure. the thickness of door and side walls is 45mm double-layer metallic sheets. walls are filled with thermal insulation materials. it’s standard rack 19” (or 21”) 30u and 40u, and door installed heat exchangercooling system (air conditioner, heat exchanger or tec). monitoring system is installed at the top of the cabinet which can inform the working status and condition, and also giving alarm information to the terminal of the user. all the equipment can be installed on the upright columns in the whole space. it is water-proof with ip55 grade.

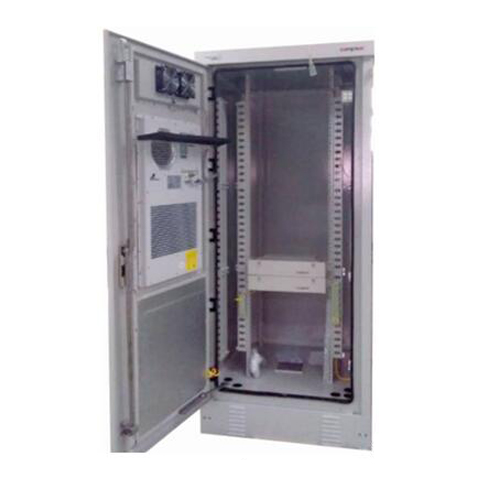

outdoor cabinet -z

this kind of outdoor telecom cabinet is adopt to double-layer insulation structure. the thickness of door and side walls is 45mm double-layer metallic sheets. walls are filled with thermal insulation materials. it’sstandard rack 19” (or 21”) 14u and 42u, and door installed heat exchangercooling system (air conditioner, heat exchanger or tec). monitoring system is installed at the top of the cabinet which can inform the working status and condition, and also giving alarm information to the terminal of the user. it has two parts for both equipment and battery installation, with water-proofip55 grade.

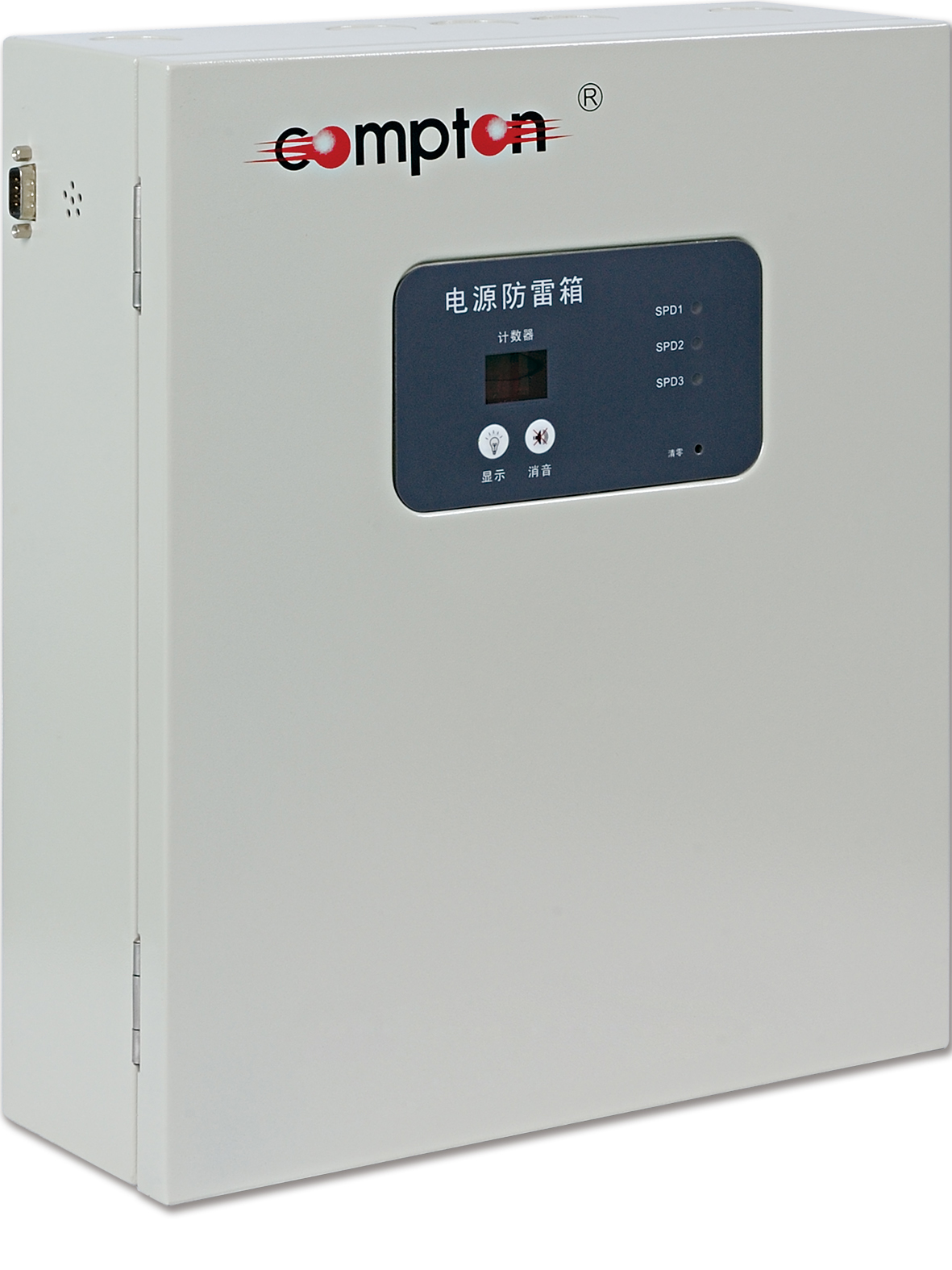

intelligent distribution box

application environment: for the b, c-class power supply protection; applicable to mobile communication base stations, communication rooms, computer rooms, power communications room, airports, factories and mines, railways, civil construction and other low-voltage ac power distribution system; with anti-lightning, anti-static, anti-over-voltage and anti-interference and other functions.

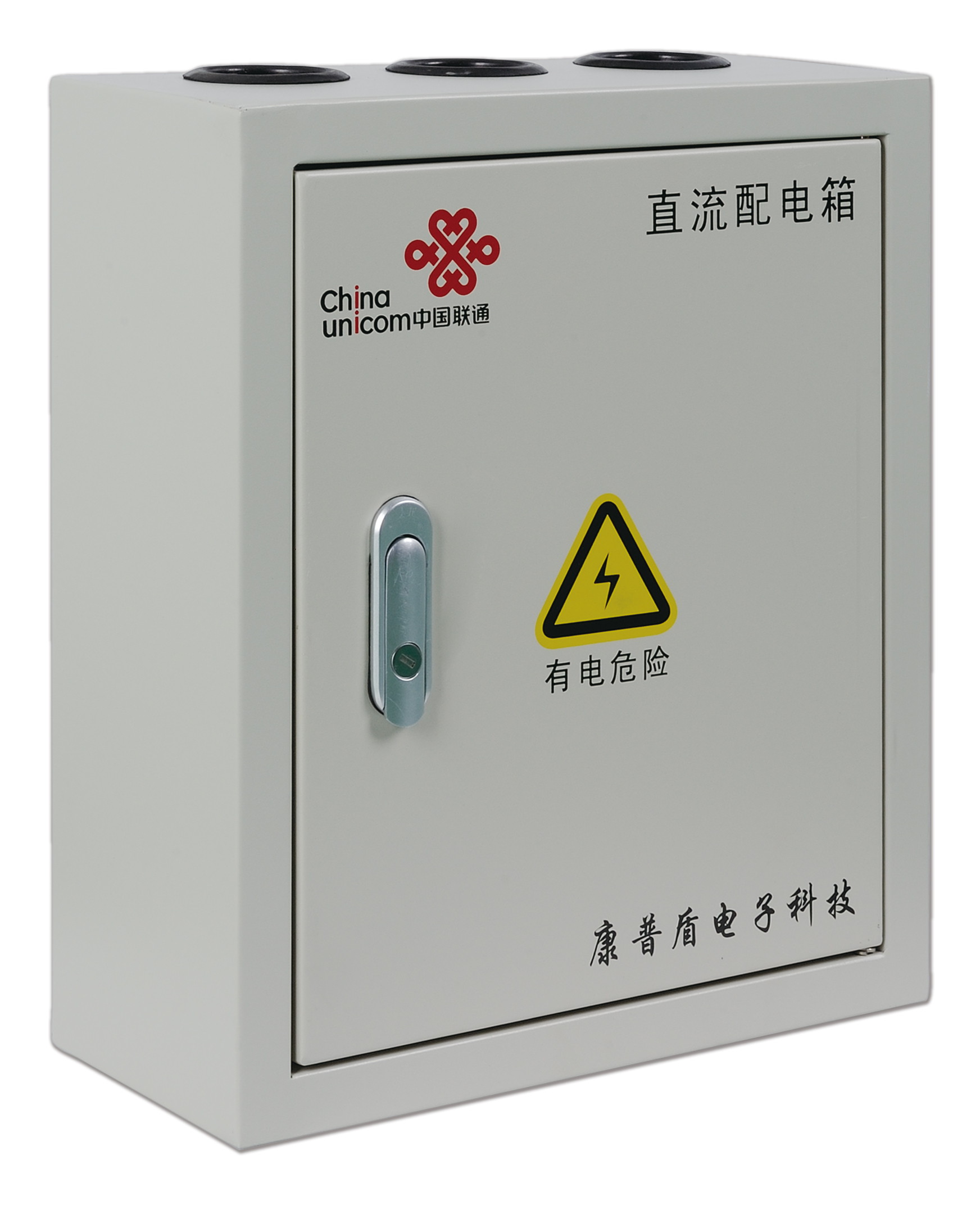

dc distribution box

size: standard size power supply: 220v material: combination material packaging: universal packaging application environment: mainly used in communication base stations, communications rooms and other industries rated working voltage-48v, rated output current of not more than 400a of the dc power distribution system; 3g network bbu power supply, distributed base station equipment, outdoor integrated dc power supply equipment; dc power supply far supply equipment; factory automation and control of low-voltage direct current distribution system;

three - phaseac lightning protection distribution box

size: standard size power supply: 220v material: combination material packaging: universal packaging application environment: mainly used for communication base stations, communications room and other sectors of the three-phase ac power distribution system; can effectively inhibit the induction mine, operating over voltage interference, so as to effectively protect the electrical equipment.

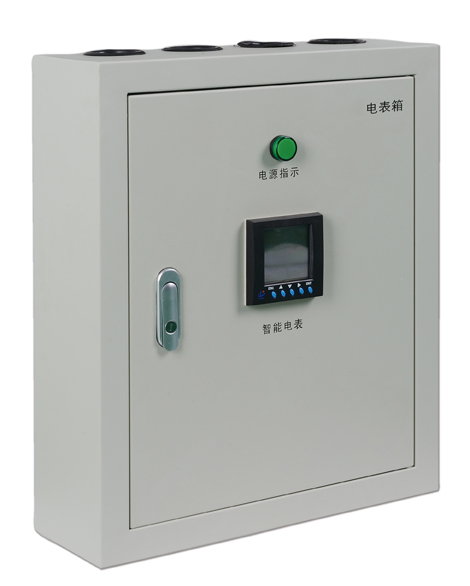

meter box

application environment: communications base stations, communications room and other industries rated operating voltage of 380v, 220v power distribution system; base station transformation, increase the current, voltage, energy measurement and other functions; requirements meter and the total distribution box to facilitate the separation of observation and measurement of the occasion.

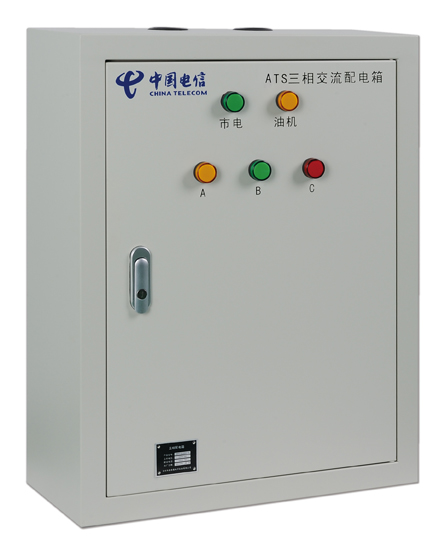

dual power switch box

size: standard size power supply: 220v material: combination material packaging: universal packaging application environment: it is suitable for the ac / dc emergency power supply system with the rated working voltage below 400v and rated current less than 400a. it can ensure the continuous and reliable operation of the electrical equipment. mainly used for communication base stations, communications room and other sectors of the ac-dc power supply system;

single - phase ac lightning protection distribution box 01

single - phase ac lightning protection distribution box 01 application environment: mainly used for communication base stations, communications room and other sectors of the single-phase ac power distribution system; can effectively inhibit the induction mine, operating over voltage interference, so as to effectively protect the electrical equipment.
